Prensa de Moldeo Hidráulica 4 Columnas
Modelo: Stampa

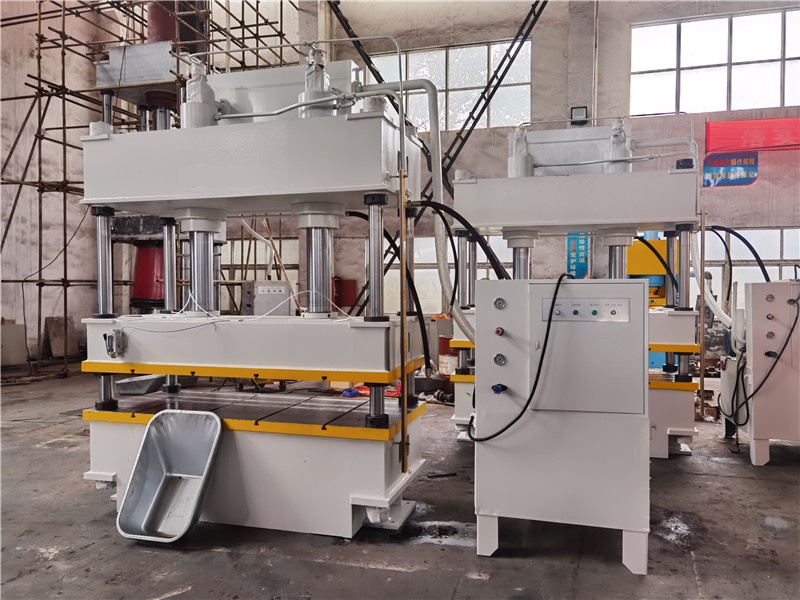

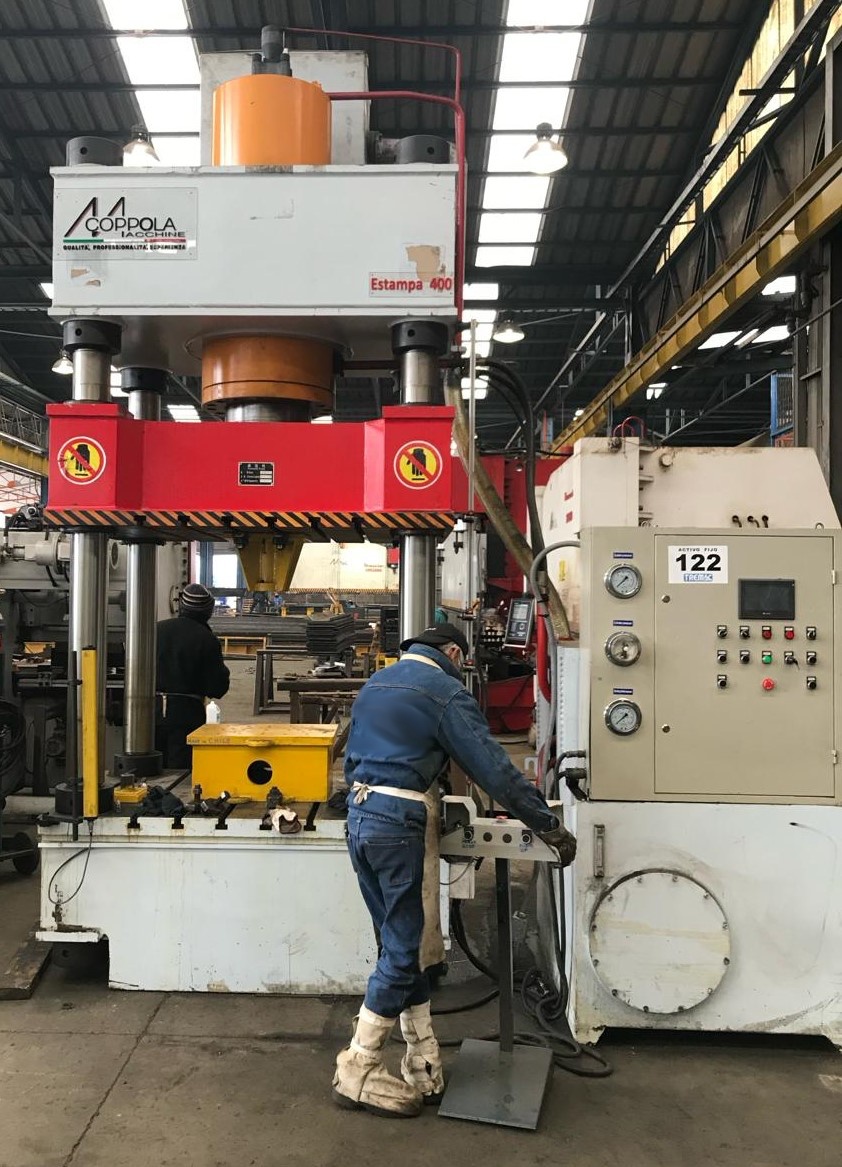

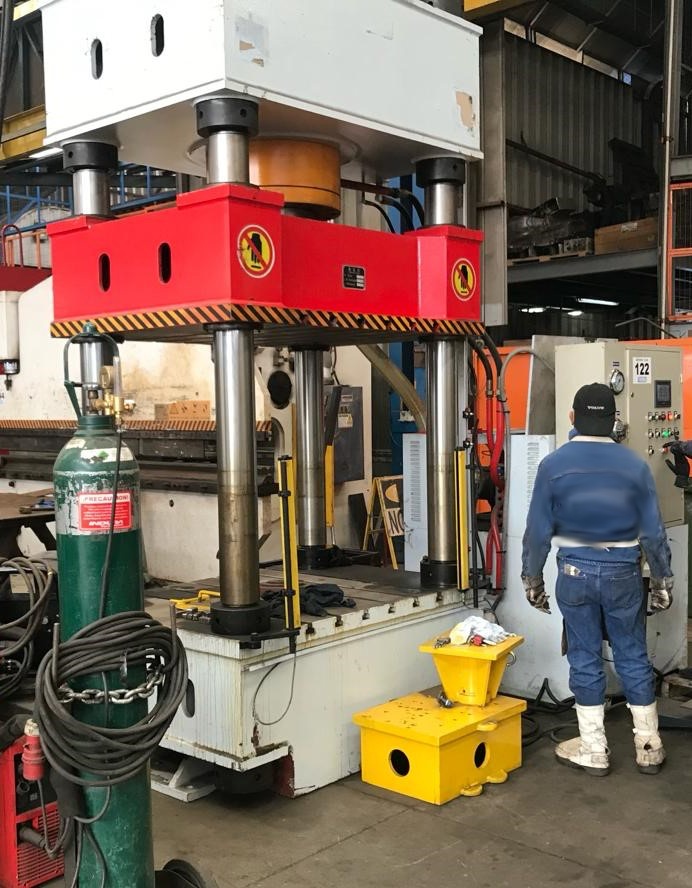

Prensa de Moldeo Hidráulica 4 Columnas
- Stampa
Características:
- Prensa Hidráulica de 4 Columnas diferentes capacidades que van desde 30 Ton a 630 Ton
- Panel de control se encuentra separado de estructura principal para facilitar su operación
- Prensa hidráulica diseñada para el estampado y la deformación de planchas.
- Dimensióń de la mesa :Desde 400 mm Hasta 900 mm, adaptable a su propia necesidad
Especificaciones técnicas:
| Presión | Recorrido | Apertura y cierre máximo | Tamaño de la mesa | Motor | Dimensiones de la Maquina | Peso de la Maquina |
| STAMPA 300 KN | 300mm | 500mm | 400x400mm | 3 kw | 800x700x2100 mm 800x750x1200 mm |
1081 kg |
| STAMPA 400 KN | 300mm | 500mm | 400x400mm | 3 kw | 800x700x2100 mm 800x750x1200 mm |
1288 kg |
| STAMPA 500 KN | 400mm | 600mm | 500x500mm | 4 kw | 900x800x2200 mm 900x850x1400 mm |
1863 kg |
| STAMPA 630KN | 400mm | 600mm | 500x500mm | 4 kw | 900x800x2200 mm 900x800x1400 mm |
2012 kg |
| STAMPA 1000 KN | 400mm | 700mm | 600x600mm | 4 kw | 1000x900x2350 mm 1000x900x1500 mm |
3277 kg |
| STAMPA 1500 KN | 400mm | 700mm | 600x600mm | 4 kw | 1000x900x2350 mm 1000x900x1500 mm |
2830 kg |
| STAMPA 2000 KN | 400mm | 750mm | 700x700mm | 5.5 kw | 2800x1000x1600 mm 1100x1000x1600 mm |
3565 kg |
| STAMPA 2500 KN | 400mm | 750mm | 700x700mm | 5,5 kw | 3000x1100x1800 mm 1100x1000x1600 mm |
4140 kg |
| STAMPA 3150 KN | 400mm | 800mm | 800x800mm | 7.5 kw | 3200x1200x1800 mm 1400x1200x1650 mm |
5290 kg |
| STAMPA 4000 KN | 400mm | 800mm | 900x900mm | 7.5 kw | 3200x1200x1900 mm 1400x1200x1650 mm |
6152 kg |
| STAMPA 5000 KN | 500mm | 900mm | 1000x1000mm | 11 kw | 3500x1300x2100 mm 1400x1200x1650 mm |
8682 kg |
| STAMPA 6300 KN | 500mm | 1000mm | 1000x1000mm | 11 kw | 3500x1300x2100 mm 1500x1300x1650 mm |
11327 kg |
