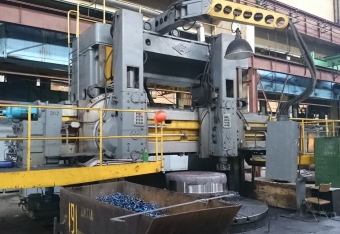

Torno Vertical
Modelo: Kolomna
Torno Vertical
- Kolomna
Especificaciones técnicas:
| Manufactured by Kolomna(Russia) |
| Year of manufacture 1991 |
| Max. turning diameter, mm 3200 |
| Faceplate diameter, mm 3200 |
| Max. turning height, mm 2000 |
| Max. workpiece weight, kg 50000 |
| Number of tool slides 2 |
| Machine weight, kg 95400 |
| Movement of vertical supports, mm: |
| - Vertical 1250 |
| - Horizontal 1720 |
| Support movement per limb, mm: |
| - upper right turning 1250 |
| - upper left compound 1250 |
| Feeding, mm/min 0,059...470 |
| Rapid feed, mm/min 2715 |
| ace plate rotation speed, rpm 0,66...62,1 |
| Main drive power, kw 70 |
| Machine dimensions, mm 5100 x 9300 x 7200 |
| machine height above floor level, mm 6080 |
